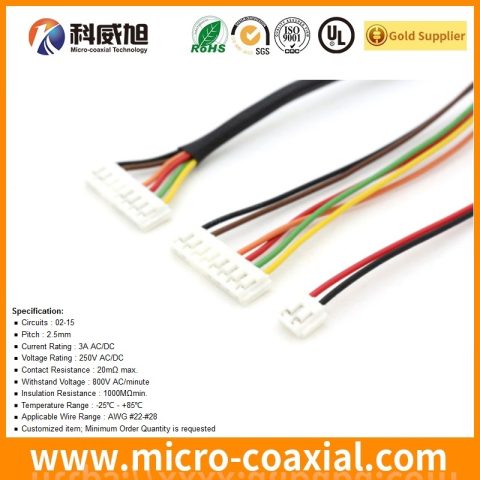

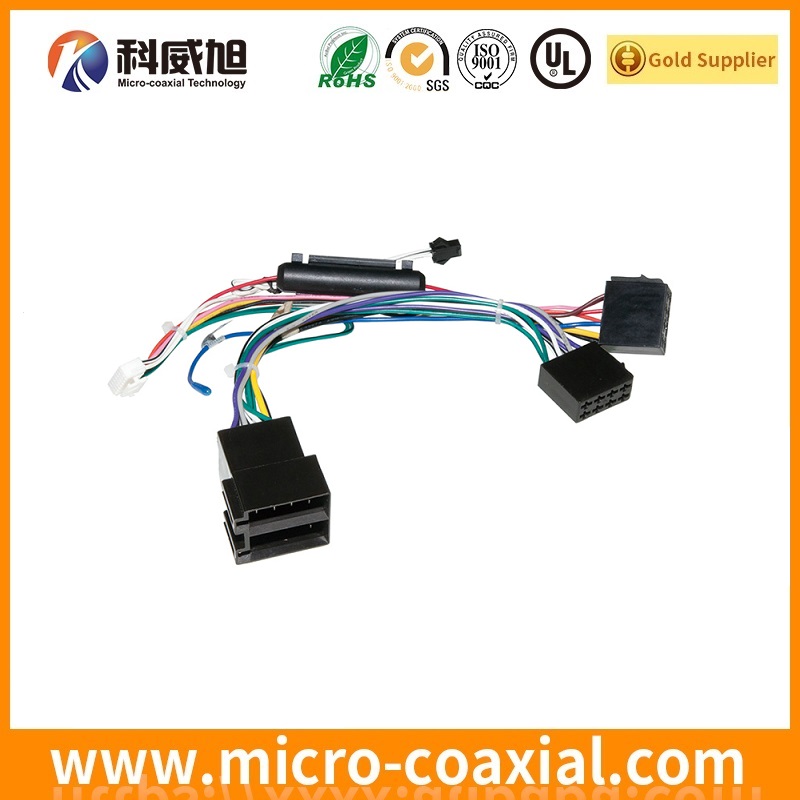

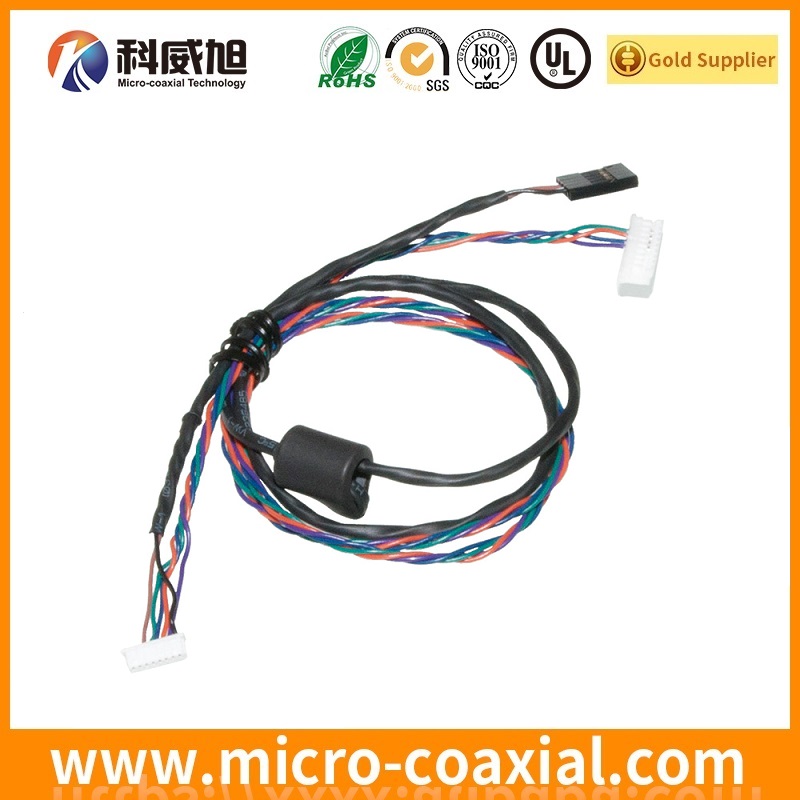

Wire harness assembly Wiring Harness Assemblies Customized
Connector brand: Molex, JAE, JST, Hirose, Kel, Tyco, 3M, LEMO, I-PEX, FCI, Samtec
Custom wire harness assembly: Wire harness assembly molex wiring harness, JAE wiring harness, 3M Wire harness assembly
We could custom JAE Wiring Harness Assemblies, Molex wire harness assembly, Hirose Wiring Harness Assemblies, Tyco wire harness assembly, Samtec wiring harness assembly
We could OEM ODM Wire harness assembly Wiring Harness Assemblies Customized to you. Using all the connector brand, such as Molex, JAE, JST, Hirose, Kel, Tyco, 3M, LEMO, I-PEX, FCI, Samtec, we are professinoal in wiring harness assembly following your specification.
A Wiring Harness, also known as a cable harness or wiring assembly, is a grouping of wires, cables, or subassemblies designed to transmit signals or electrical power. A basic Wire Harness may include as few as three discreet components, while the more classic harnesses include many more wires and other passive, and potentially active, components.
A Wiring Harness is often confused with a cable assembly; the main difference between the two is that a cable assembly usually has just two ends while a Wiring harness has multiple branches/ends running off in many different directions with multiple terminations on each branch.
The typical wire harnesses that include dozens of wires and sometimes hundreds of different components and terminations. Our engineering staff is well versed in the design and construction of wire harnesses and is available to assist in the development of the most efficient harness to meet your demands.
Wire harness assembly used: Micro coaxial cable, Fine Coaxial Cable,SGC cable,Teflon wire,Micro coax, Hook-up wire
|Type of cable assembly & wiring harness||LVDS cable,eDP cable,MCX cable,SGC cable|
|Application of cable assembly||electronic, industrial, medical,HD camera|
|Connector Type of OEM wiring harness||Solder, Crimp, IDC, Molding|
|Terminal used in cable assembly||Original or local equivalent available|
|Housing used in cable & wire harness assemblies||Original or local equivalent available|
|Color of Wire used wire harness assembly||Customized according to your requirements|
|Length of Wiring harness assembly||Customized according to your requirements|
|Category of cable assembly||Wiring harness assemblies|
|Cable assembly Materials||UL/CSA, VDE, SAA, CE, CB; SAE/JASO/DIN|
|Our Service for wiring harness assemblies||OEM & ODM|
|Our support for cable assembly||Sample confirmed before mass production|
|Certificate of wiring harness assembly||ISO 9001,UL,SGS Quality System|
|RoHS/REACH of Wiring harness assemblies||ROHS/REACH compliant.|
|Contact us to custom cable assembly||[email protected]|
If you want to custom a molex wire harness assembly
Please contact us anytime: [email protected]
Please kindly send the drawing or specification of the LVDS cable assembly including the following information:
1. What’s the quantity do you want (sample / mass production)
2. Part number & mark pin “1” location of each connector
3. Length of cable
4. Pin mapping (fill the table above)
5. Other requirement information etc.
