How to produce a LVDS cable

LVDS Cable means Low Voltage Differential Signaling Cable.  It is widely used in many fields .Now, You can see it in LED TV, Note Book etc. Because we usually connect display side and Mother board side together through LVDS Cable. But how to produce a high-quality LVDS cable ?

LVDS Cable is a kind of custom cable. We must make a drawing before production. The drawing must shows connector type , length ,Pin assignment and other required information.

There is a drawing of LVDS Cable as below. Now, please follow us .we will introduce it and let you know how to produce it.

How to custom an eDP cable LVDS cable Micro coaxial cable assembly

As per this drawing, we can know Below infos.

1. The panel side connector : JAE FI-X30HL (or EQ),
2. Mother board side connector : Dupont 2.0 2*15P(or EQ),
3. Wire : UL1571#28AWG
4. Cover: Tinned copper Braid
5. Insulation: Acetate Cloth tape
6. Length:350MM

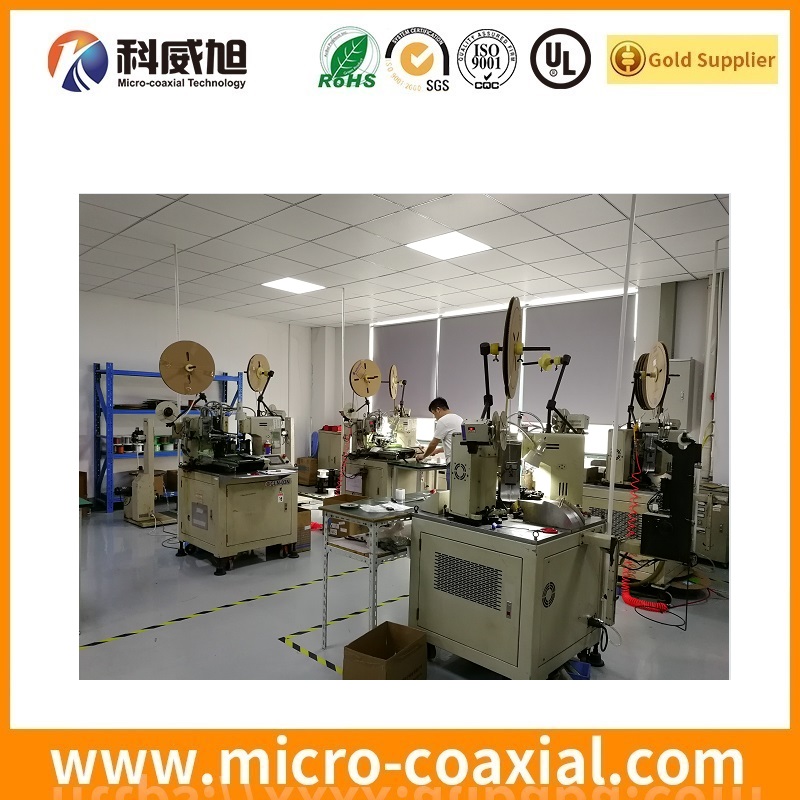

First, we cut wire and crimp terminals on wires by using Fully automatic swivel arm crimping machine .( machine picture as below)

OEM ODM JST JAE Wiring Harness Assembly Wire Harness Automatic crimping machine

Second, we need to test Terminal Pulling Force every hour by using tester as below:

Third, assemble panel side connector FI-X30HL as below and then twist wires

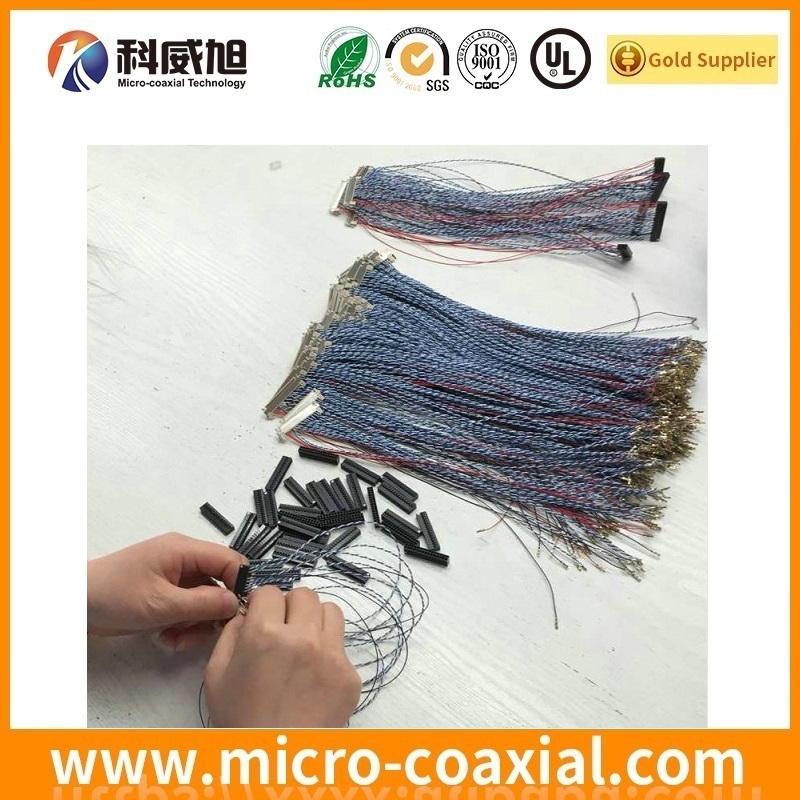

Fourth, assemble mother board side connector Dupont 2.0 2*15P as below.

Custom JST JAE Wiring Harness Assembly Wire Harness OEM ODM

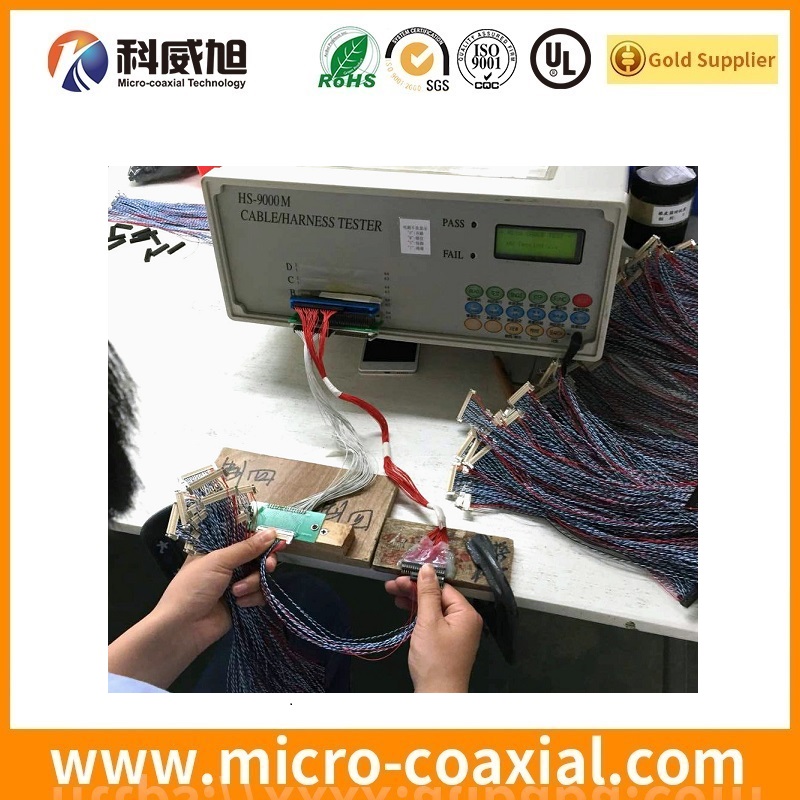

Fifth, test length and then the first test for pin assignment ,open, short etc as below

LVDS cable Wire harness assembly Wiring Harness Assemblies Customized

Sixth, assemble braid as below.

Seventh, assemble Acetate Cloth tape and fix it

Eighth,the second test for pin assignment ,open ,short etc as below

Ninth, Appearance inspection as below

Tenth, QC sampling inspection and then packing.

Now ,we finish a LVDS Cable.
